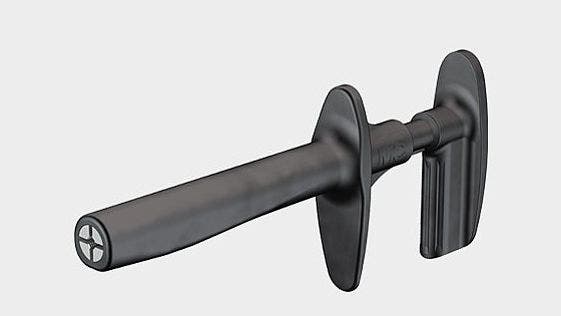

For fast and safe contacting to M4, M5, or M6 threaded bolts, for example on motor connections (contact depth 3 to 6 mm). Fixed Ø 4 mm socket in the pressure section, to fit spring-loaded Ø 4 mm plugs with rigid insulating sleeve or as a lead outlet with inline Ø 4 mm MULTILAM plug and rigid insulating sleeve. Thread inserts are replaceable and available separately. The current depends on the thread insert.
Order No. | Type | Rated voltage/current | Plier insert | Thread |
|---|---|---|---|---|
GRIP-ESZ4 | 1000 V, CAT IV / 20 A | Z4 | M4 | |
| 66.9447-21 | GRIP-ESZ5 | 1000 V, CAT IV / 30 A | Z5 | M5 |
| 66.9448-21 | GRIP-ESZ6 | 1000 V, CAT IV / 32 A | Z6 | M6 |
Click on the Order No. to open the dedicated data sheet.
