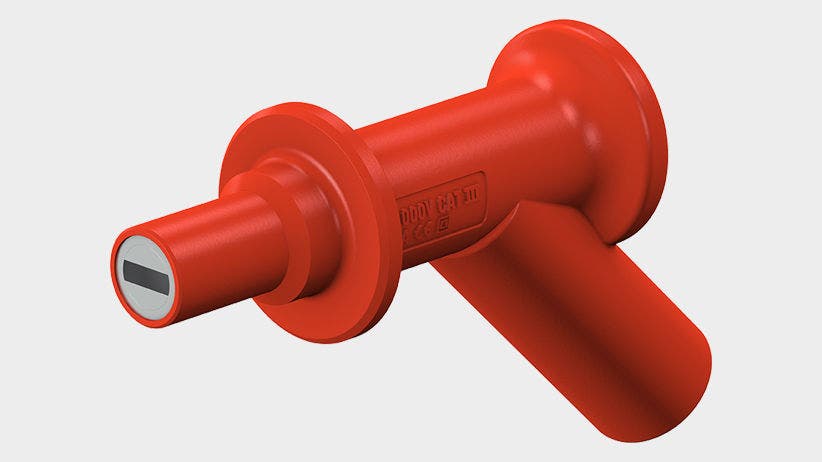

XMA-7

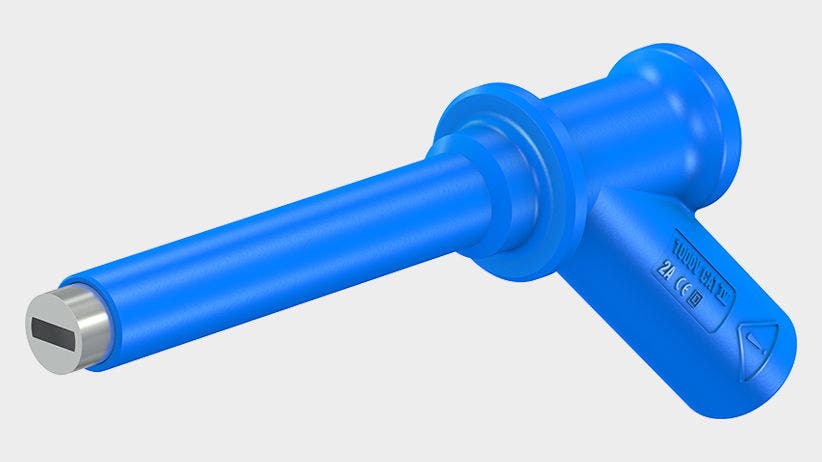

XMA-7L

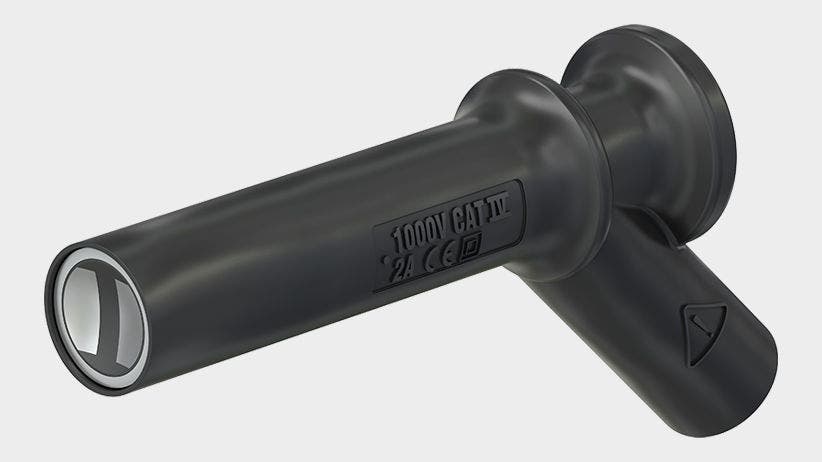

XMA-11
Made of brass for permanent installation, e.g. for connecting screw terminals. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Fork lug bent to an angle of 45°.
Order No. | Type | Rated voltage/current | Diameter of magnet | |
|---|---|---|---|---|
XMA-7 | 1000 V, CAT III / 2 A 600 V, CAT IV / 2 A | Ø 7 mm | Ni | |
XMA-7L | 1000 V, CAT IV / 2 A | Ø 7 mm | Ni | |
XMA-11 | 1000 V, CAT IV / 2 A | Ø 11 mm | Ni |
Click on the Order No. to open the dedicated data sheet.
